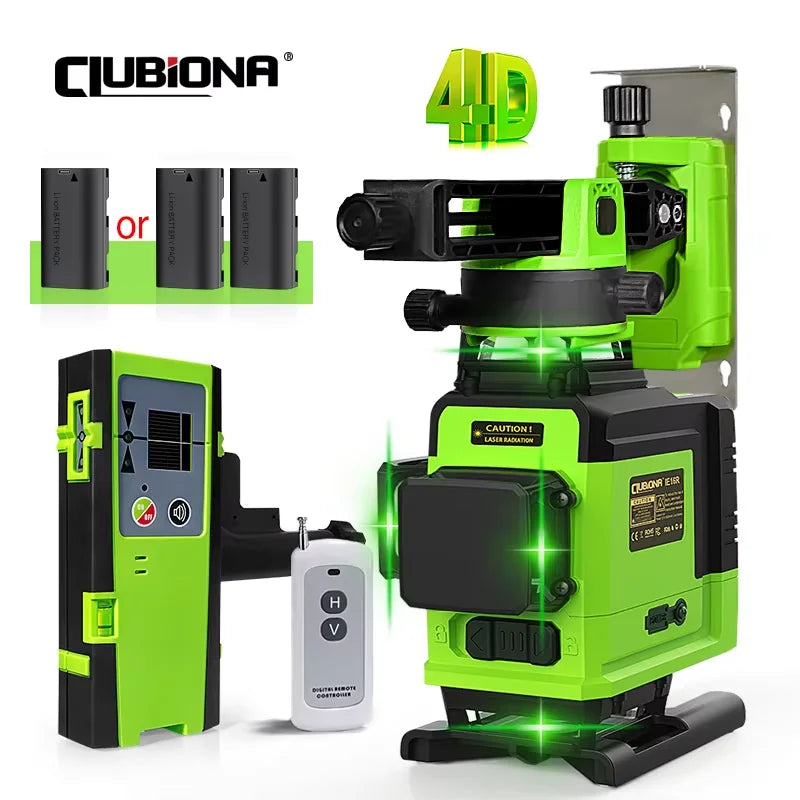

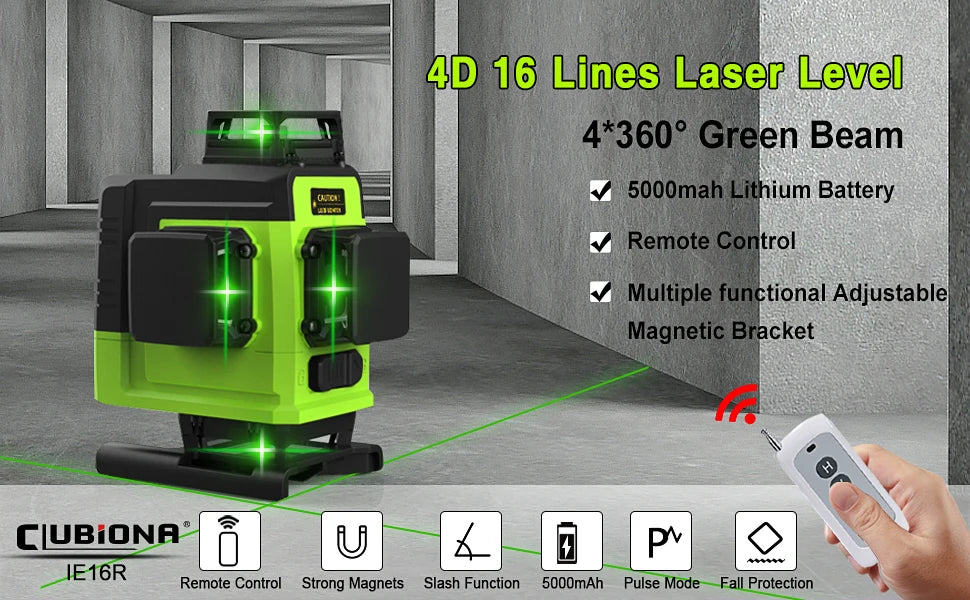

Remote Control 4D 16 lines Laser Level

4D 16 lines Professional German Core Floor Ceiling Remote Control Green Line Laser Level with 5000mahs Li-ion Battery

Specification:

Laser Line Color: Green

Standard: 16 lines (4D)

Wavelength: 520 nm (German brand Core)

Working distance diameter: 30m(without receiver/detactor) 60m (with receiver / detector),

Please note: Outdoor working distance depends on the intensity of sunlight, the stronger the sunlight, the shorter the working distance.

Leveling: Gravity pendulum self leveling

Outdoor available: YES

Outdoor working: YES

Tile Slash function (LOCK mode): YES

Self-leveling: YES

Outdoor mode (receiver mode): YES

Auto adjustment range: ±4 degrees

Working tempature: -10 degrees celsius to 50 degrees celsius

Storage Temp.: -20℃~70℃

Waterproof / dustproof: IP54

Power: 3.7V 5000 mAh Li-ion battery pack (with TYPE-C interface)

Working Time: (approximate) 12h (1 laser beam), 9h (2 laser beams), 6h (4 laser beams)

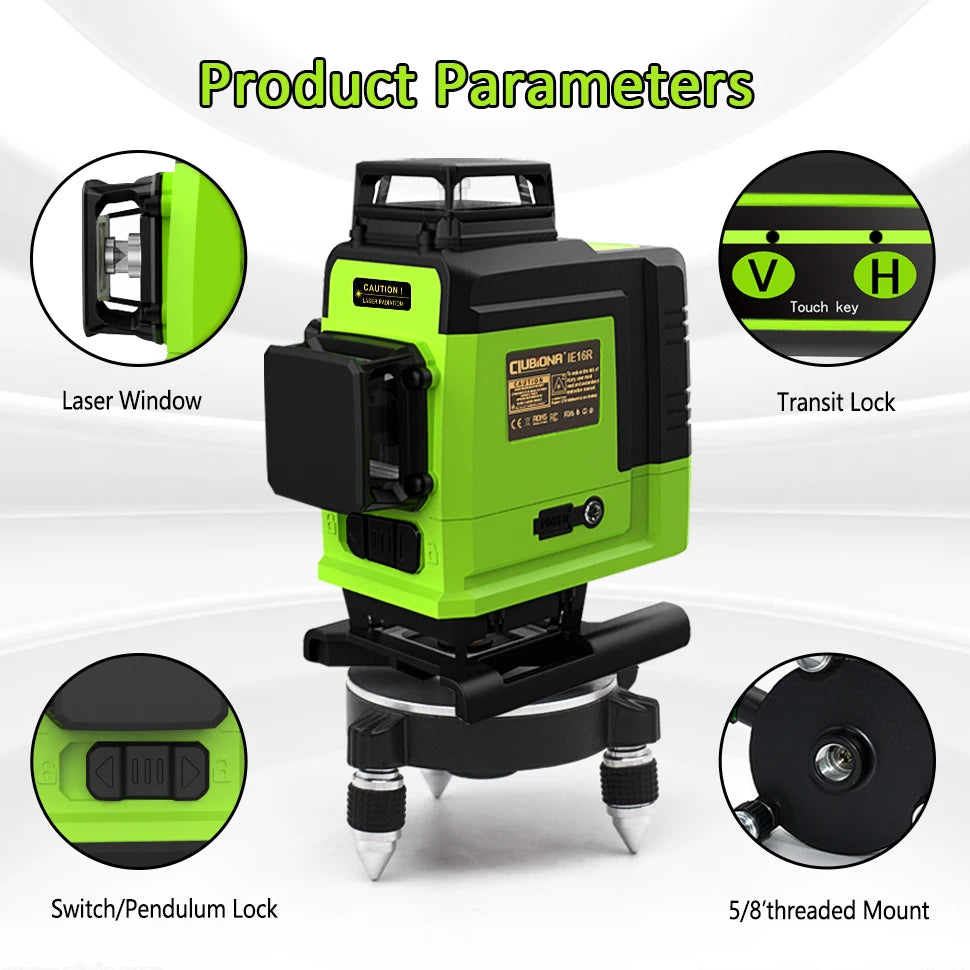

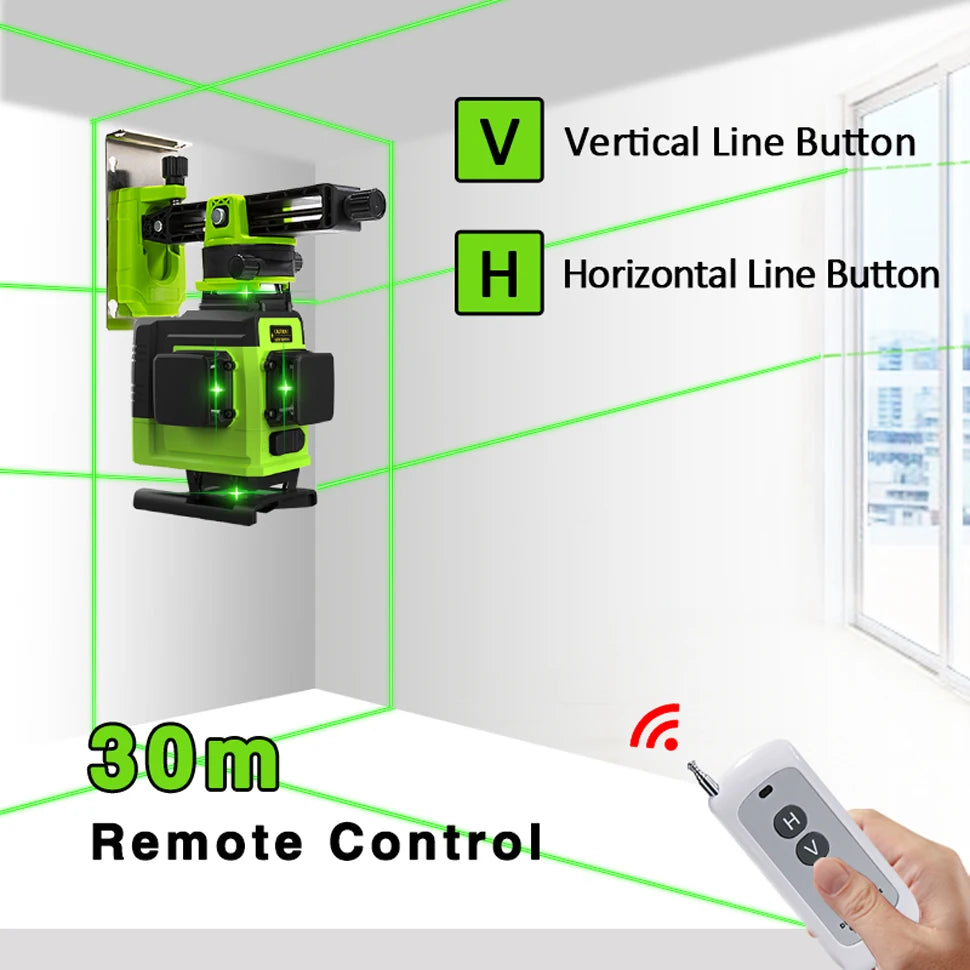

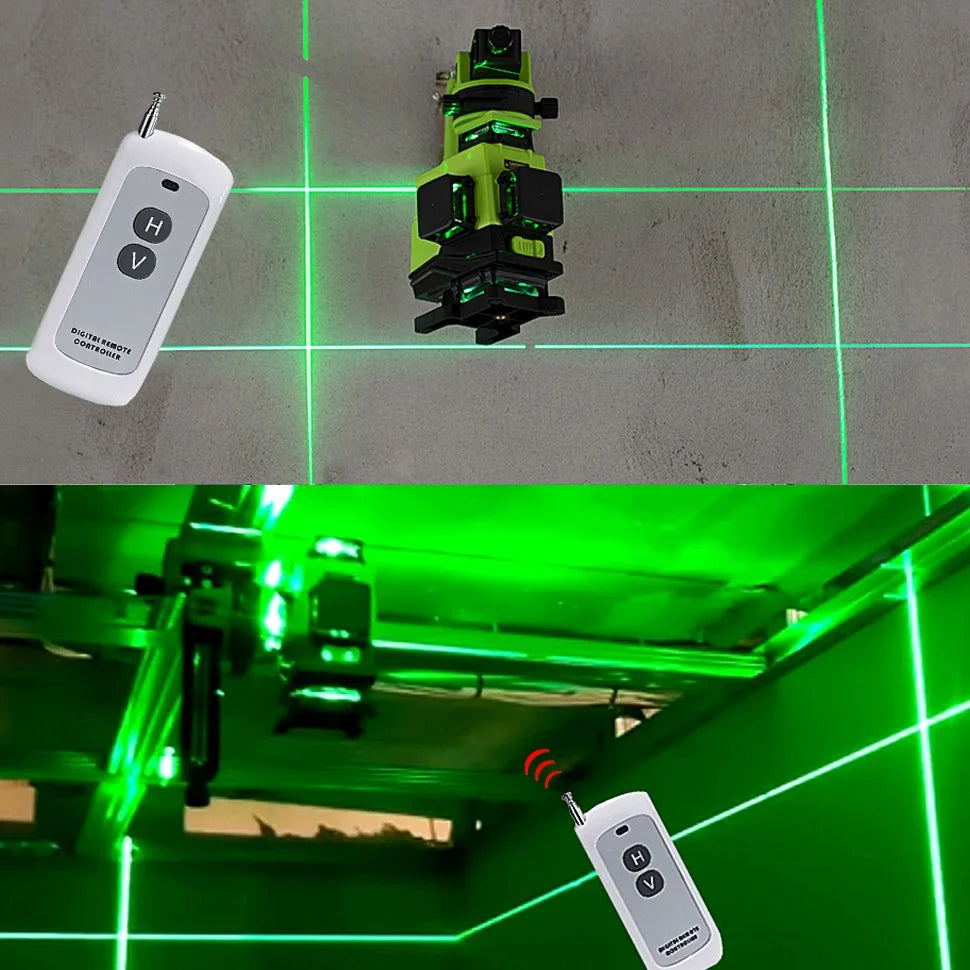

Touch key & Remote Control Integrated Mode Switching

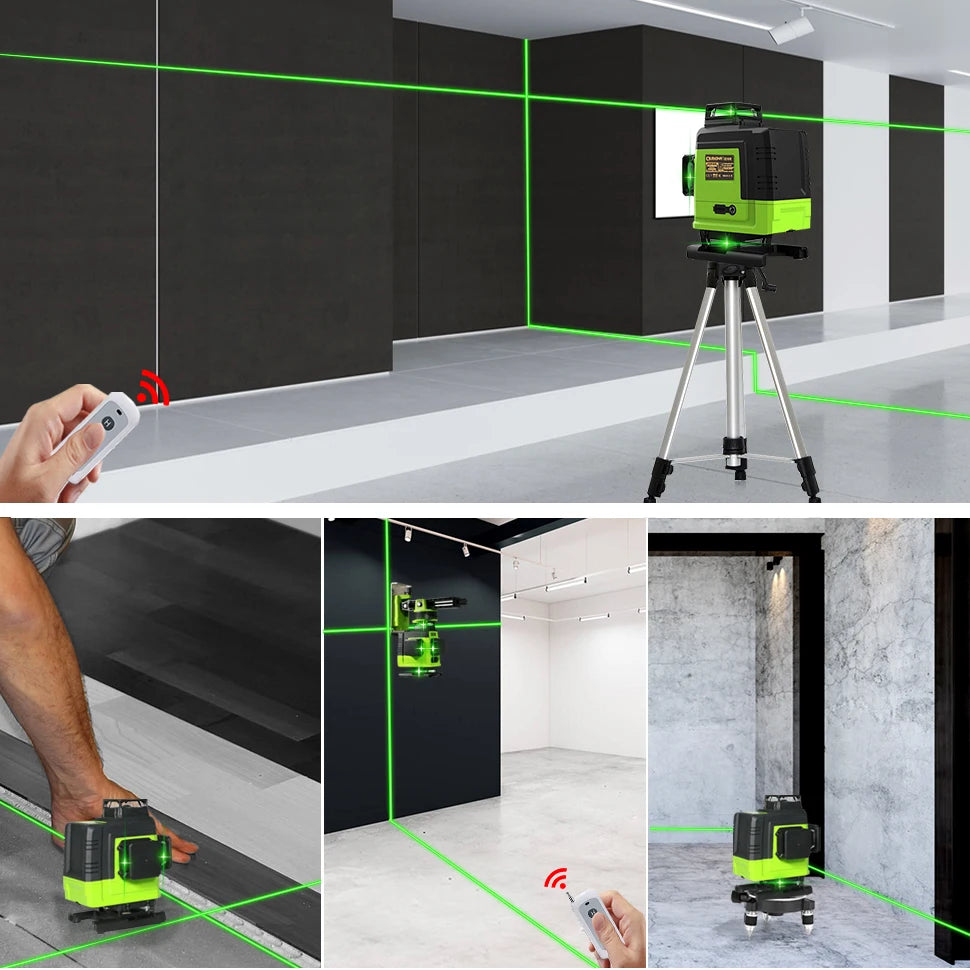

This laser level can use both the touch button and the remote control in order to easily operate 20m away.

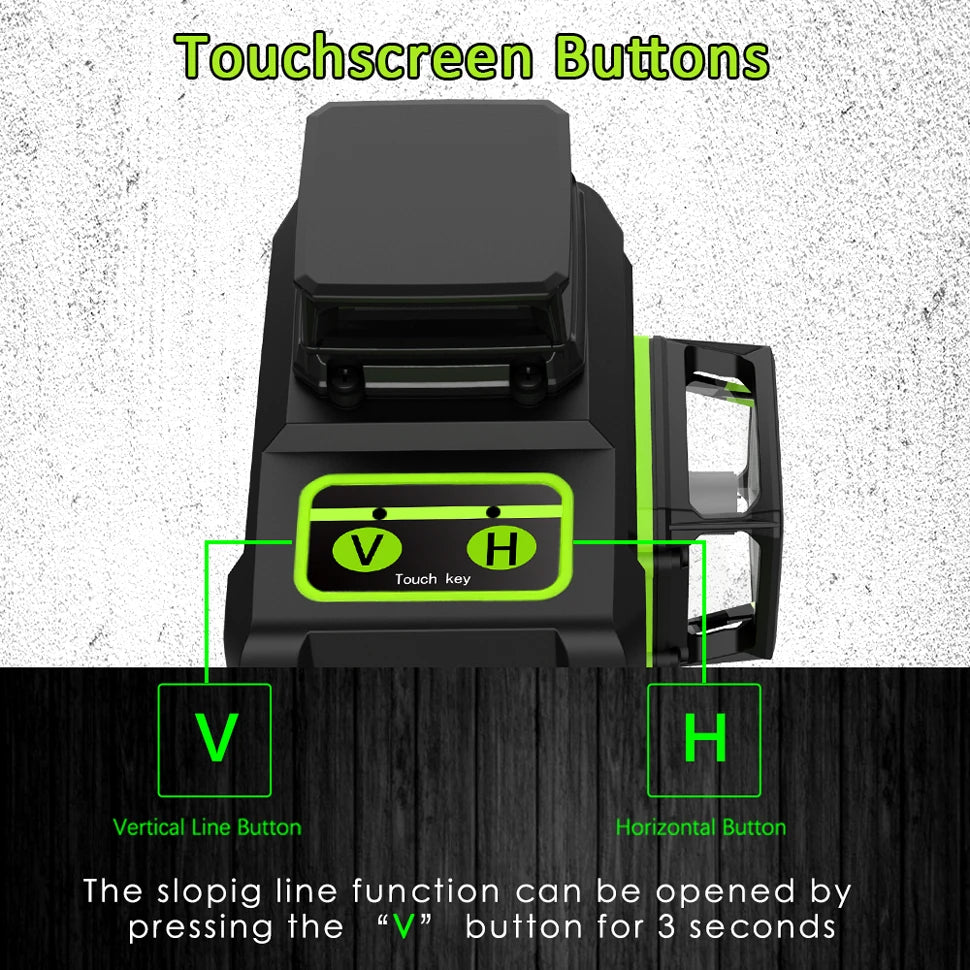

LED touch indicator (H: horizontal line switch, V: vertical line switch)

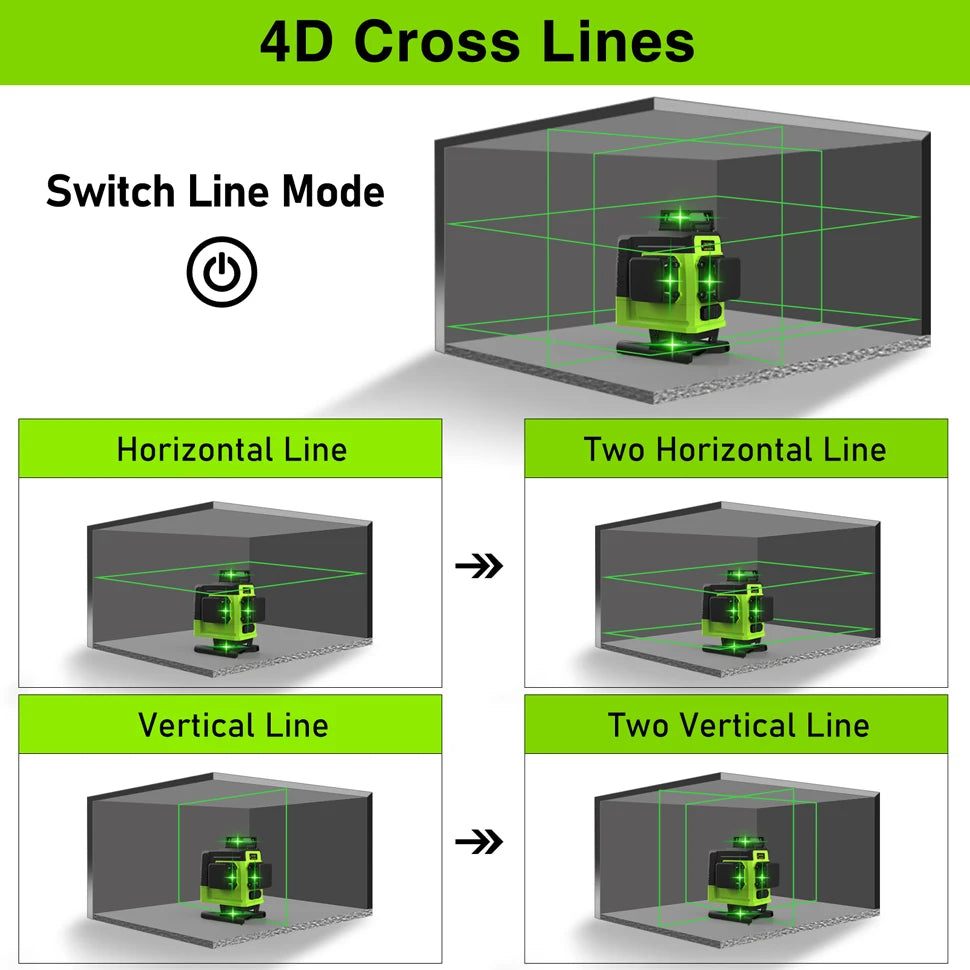

Note: The line mode switches every time when you short press the H/V button.

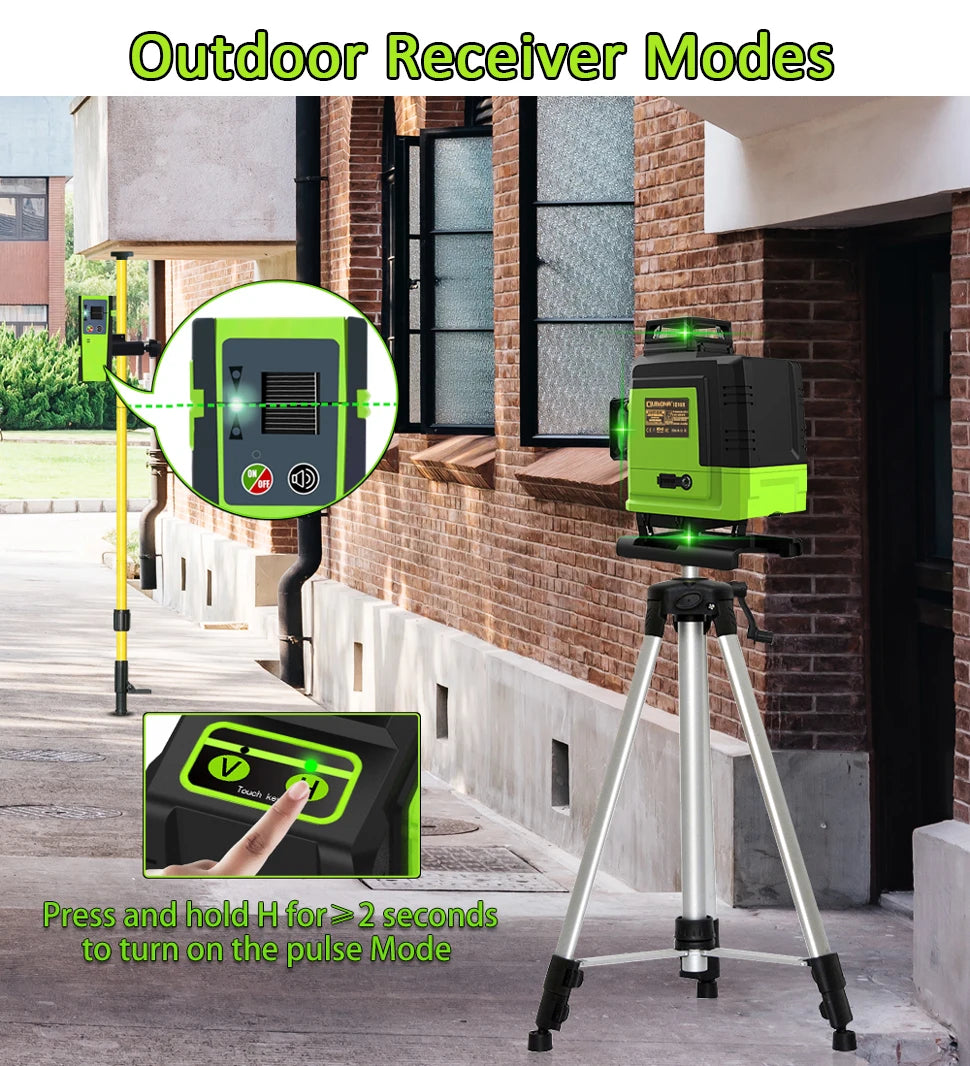

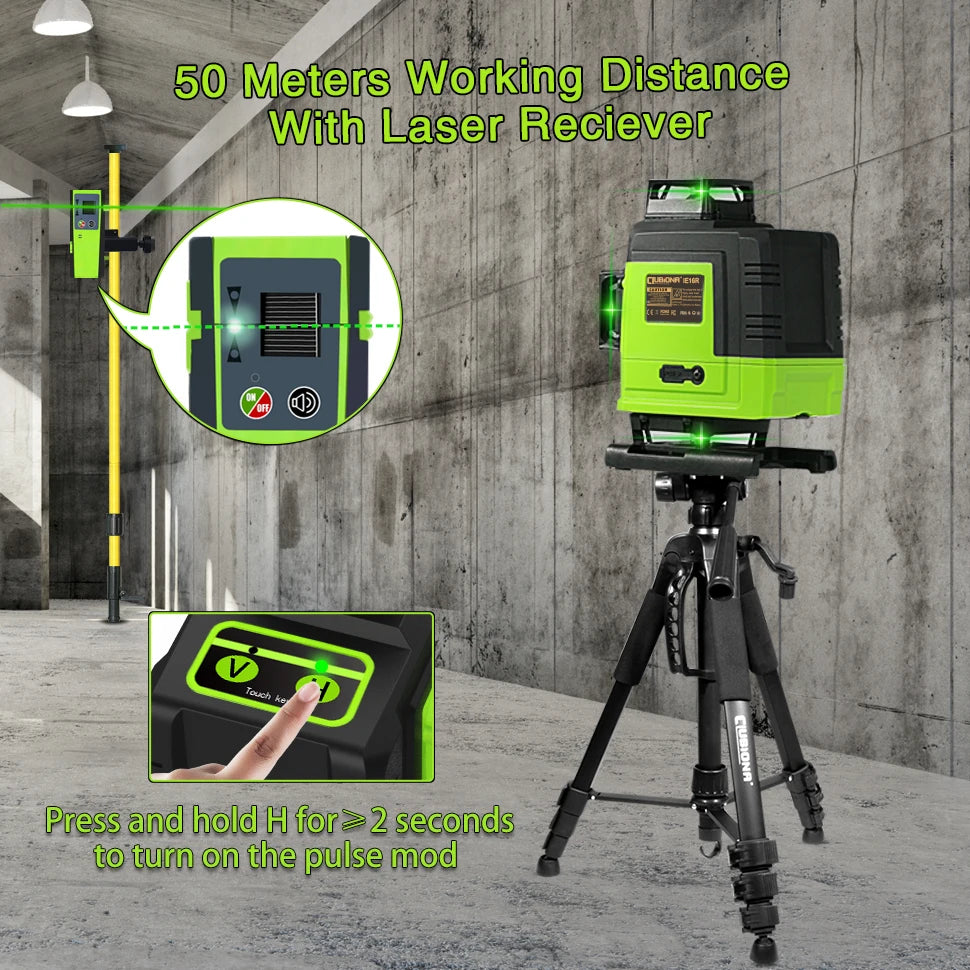

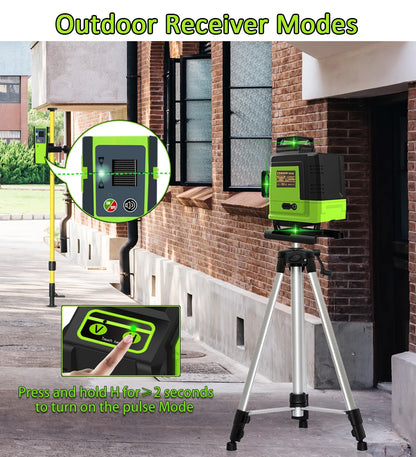

How to Open Pulse/Receiver Mode: please unlock the pendulum of the laser level, press "H" and hold it for more than 2 seconds, then the pulse/receiver mode is opened, the line laser and receiver can be compatible now.

How to Open Tilt Mode: please unlock the pendulum, press "V" and hold it for more than 2 seconds, then the red singal will appear on the keypad, so the slash function is opened.

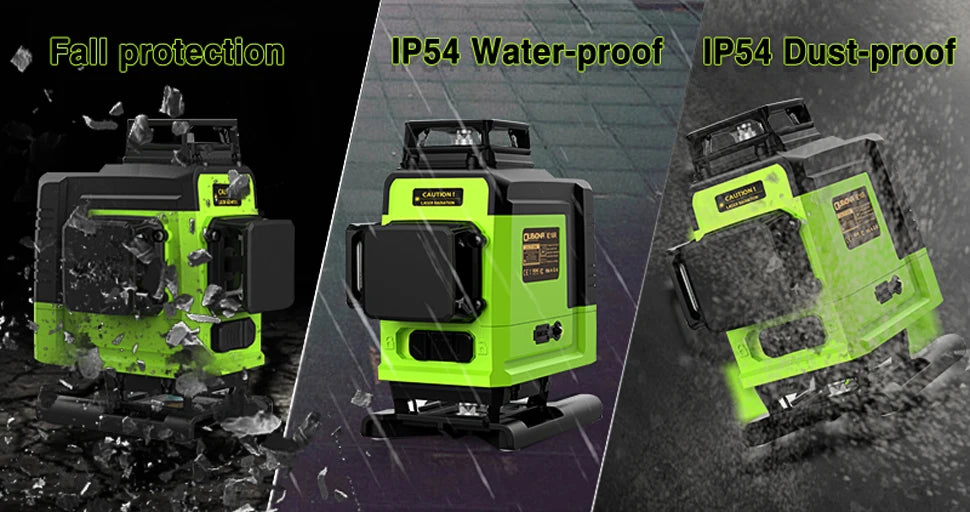

Scientific Design

The body is shockproof and drop resistant, and it is IP54 high-grade waterproof and dustproof. The movement has a smaller and lighter design, high precision, small impact, and anti-fall.

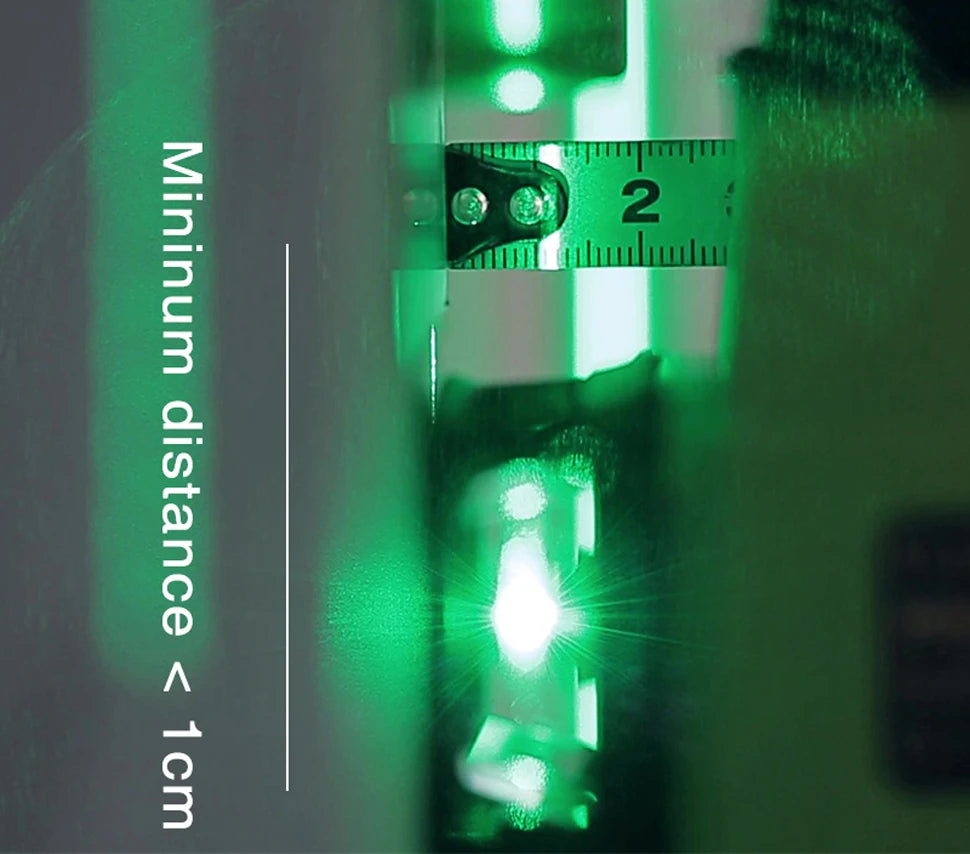

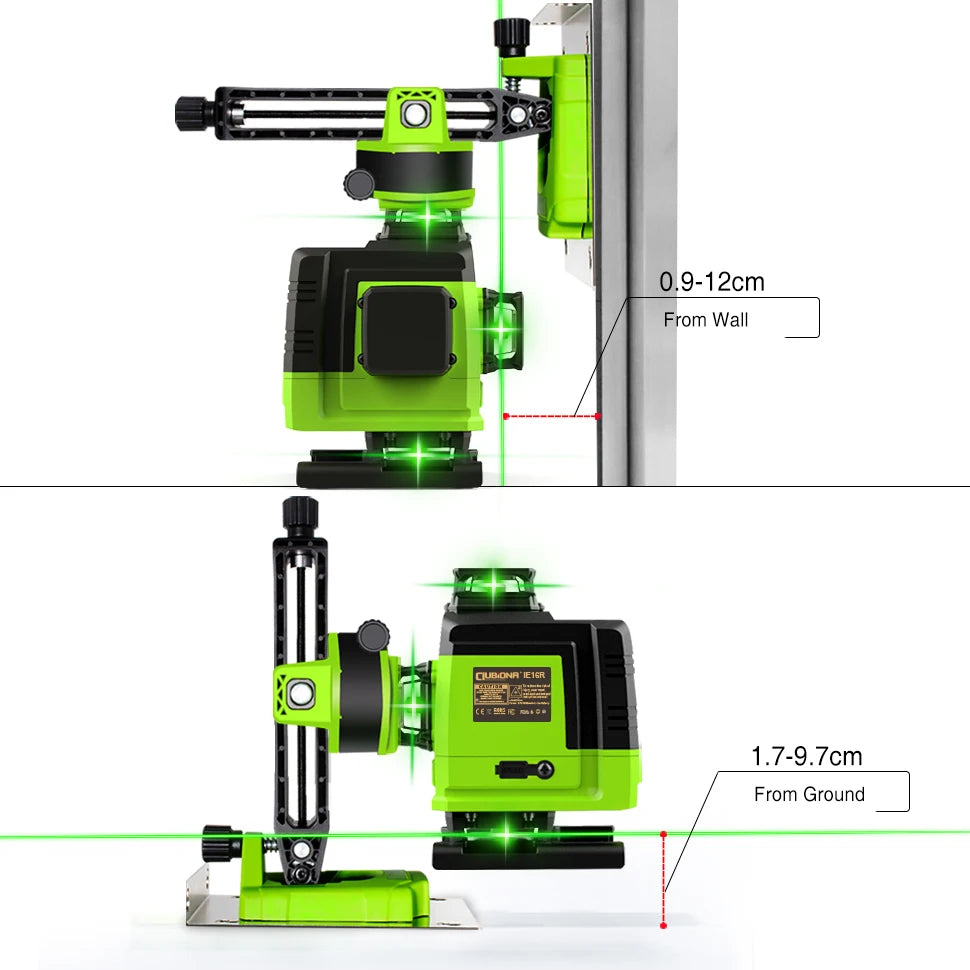

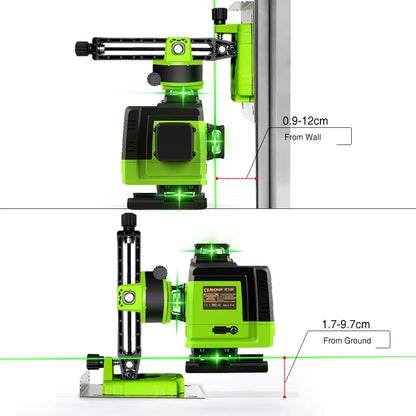

The line from the ground could be 1.7cm at its lowest, 0.9 cm from the wall at its closest.

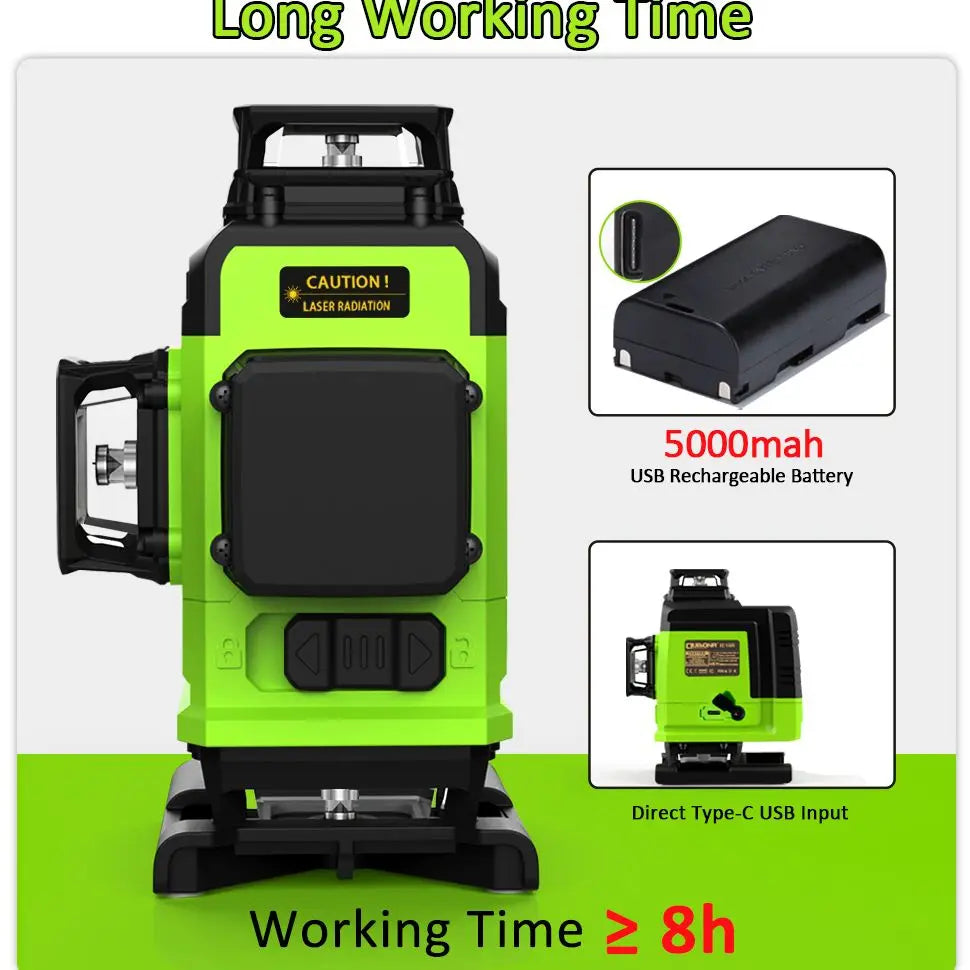

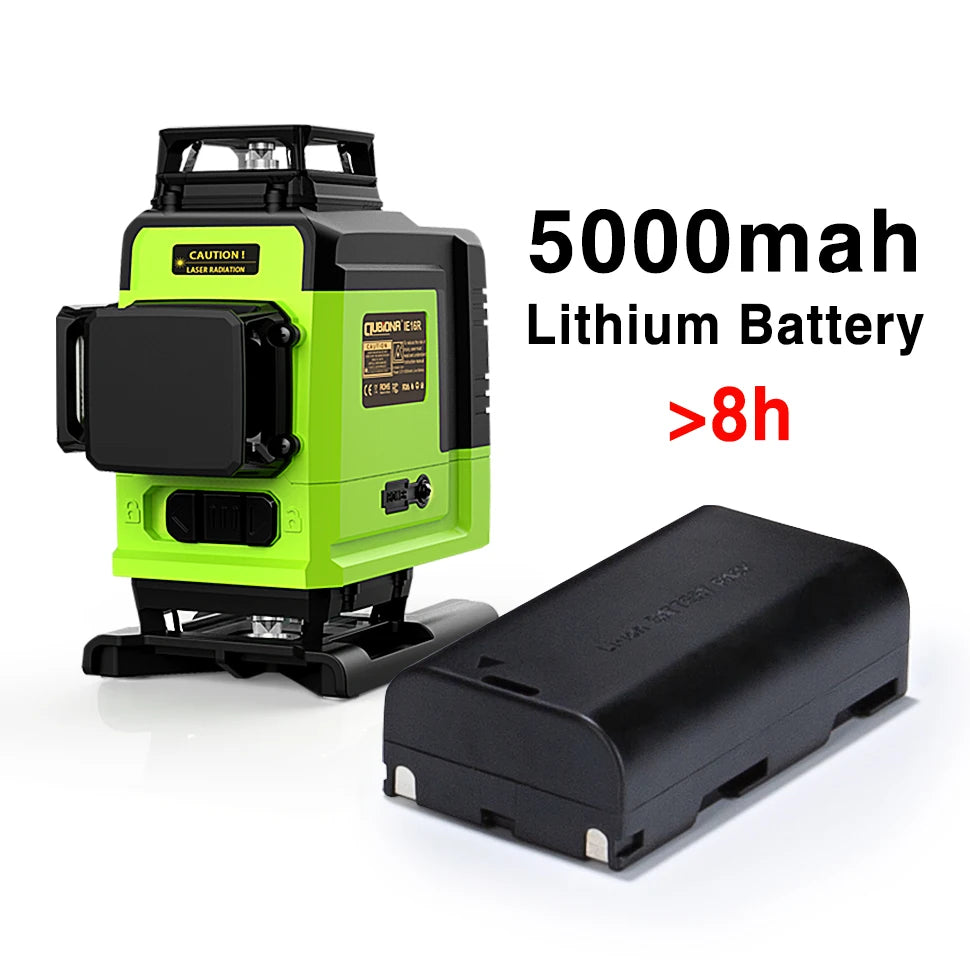

Long Working Time:

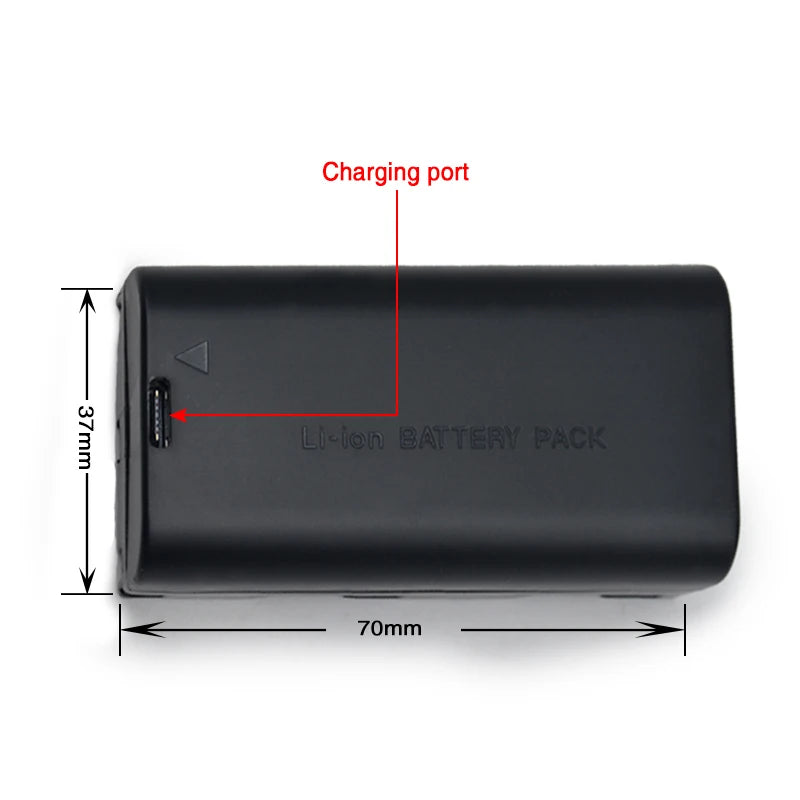

5000 Mah Li-ion battery, made up of 18650 batteries, it can be changed at necessary time.

Put the lithium battery inside the battery compartment, then the lithium battery can be charged.

The adapter can also power the line laser level separately.

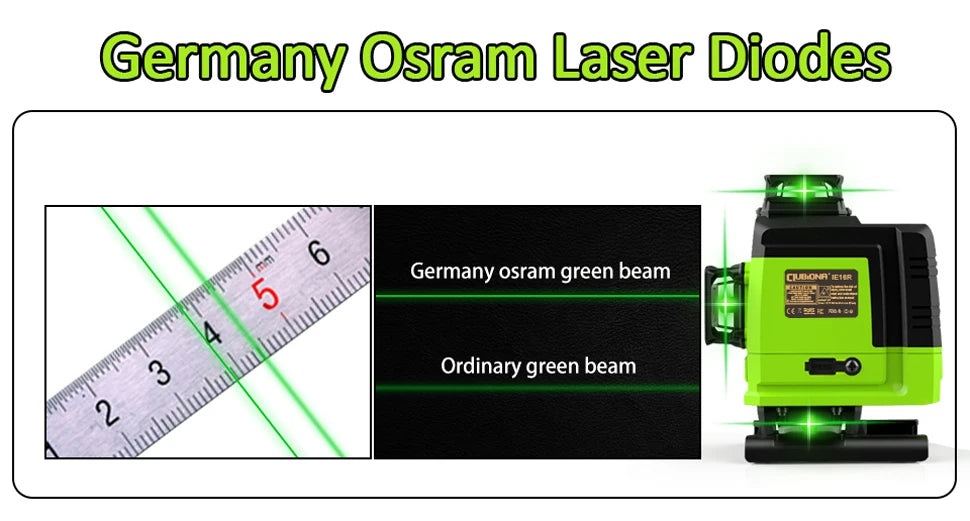

High visible green laser For Various occasion

The IE16R green laser level with higher visibility, eye friendly for all-new experience. Bright green-beam laser up to 2X brighter than standard red beams, which improves your work efficiency

Easy to operate and safe

The distance from the vertical line to wall is <=9mm and horizontal line to floor is <=17mm, greatly improves your work efficiency.

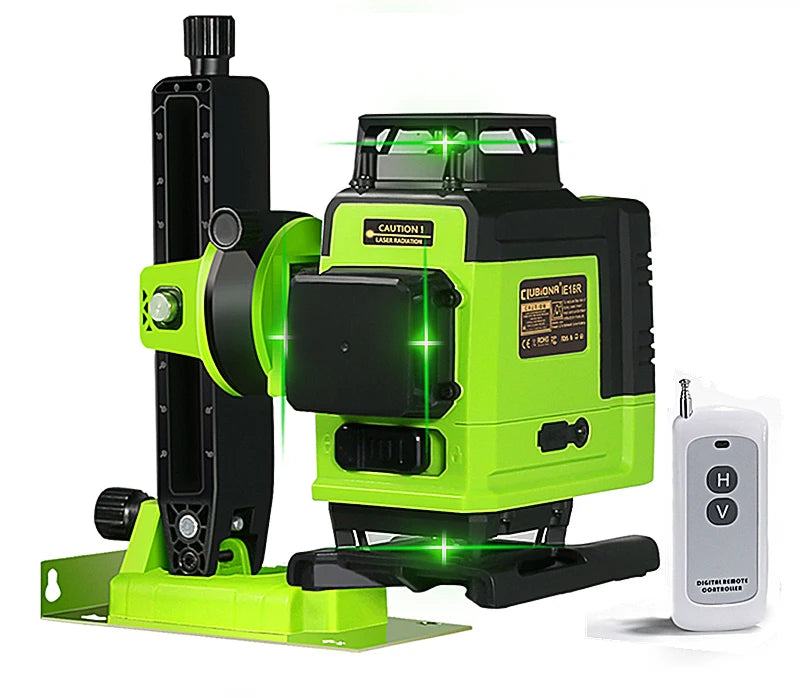

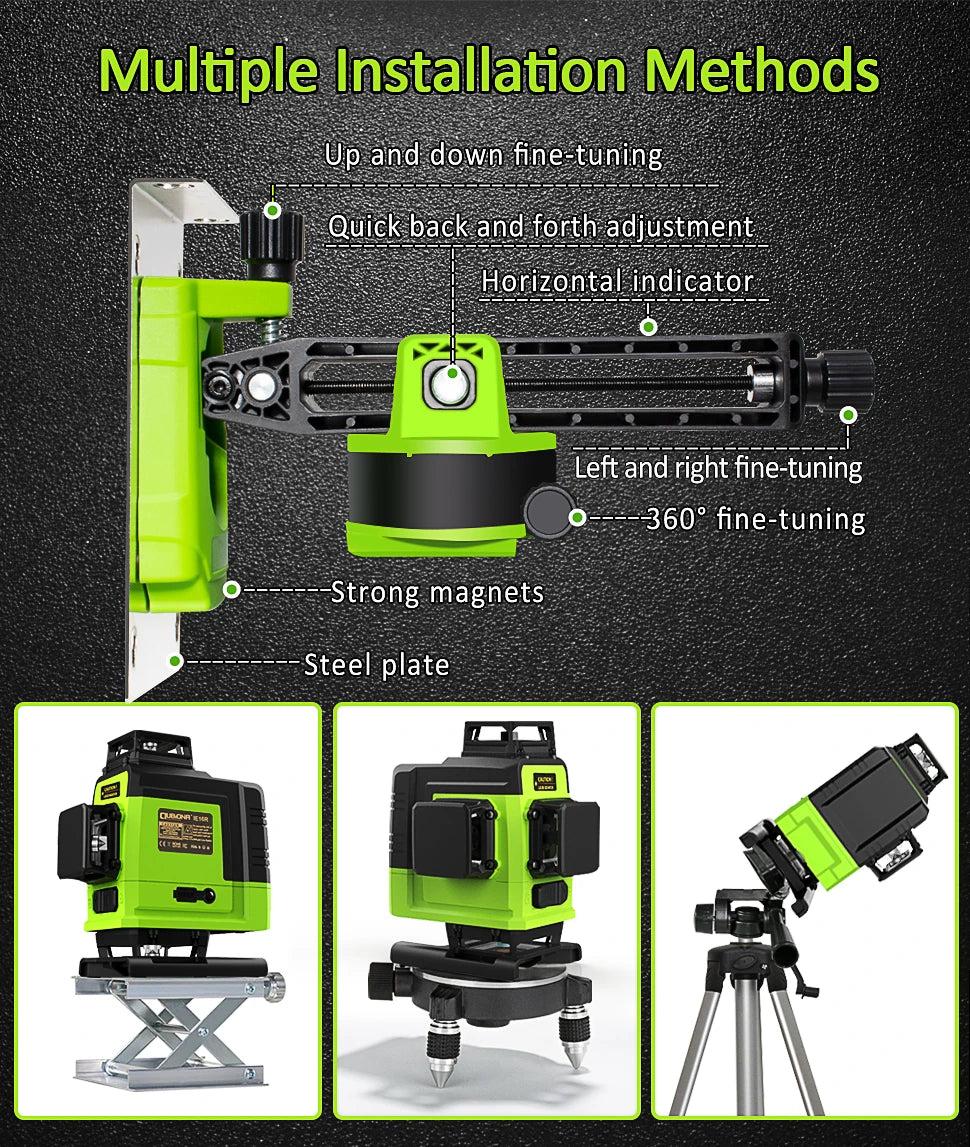

4P strong magnetic bracket ensures easy adsorption on the wall surface, 360 degree rotating increases the convenience and safety of working

Self-Leveling & 360° Adjustable Tilt Function

Self-leveling Mode:
•After power on, the self-leveling mode is enabled by default.
•When the device is out of self-leveling range(4 degrees), the laser beam(s)will blink fast
Note: When using it under Self-leveling mode, please place this laser tool on a level surface.
Manual/ Tilt Mode:
•After power on, press and hold V for 2 seconds to switch to manual mode, the LED indicator lights up in red.
•Position the device at various angles.

Product Details

Good quality originates from details.
